Low Voltage (LV) electrical distribution systems are the backbone of every building. From lighting and socket outlets to HVAC systems, pumps, elevators, and office equipment, almost all building services depend on a safe and reliable LV system.
In facilities management, electrical issues are considered high-risk and high-priority because they directly impact safety, operations, and business continuity. To manage these systems effectively, facilities professionals must clearly understand LV panels and their hierarchy — MDBs, SMDBs, and DBs.
This article provides a fully defined, step-by-step explanation of LV panels in simple English, written specifically for technicians, supervisors, engineers, and managers working in facilities management. Each point is clearly defined, explained, and linked to real site usage.
What Is a Low Voltage (LV) Electrical System?
Definition:
A Low Voltage (LV) electrical system is an electrical distribution system operating at voltages up to 1000V AC, commonly 230V (single phase) and 400V (three phase) in buildings.
Purpose:
The LV system safely distributes electrical power from the utility or transformer to all electrical loads within the building.
Where Used:
All residential, commercial, and industrial buildings.
FM Note:
Proper operation of LV systems is critical to avoid electrical shock, fire hazards, and equipment damage.
What Is an LV Panel?
Definition:
An LV panel is an enclosed electrical assembly containing circuit breakers, busbars, protection devices, and meters used to control and distribute electrical power.
Purpose:
- Distribute power to different circuits
- Protect equipment from faults
- Allow isolation during maintenance
Where Used:
Electrical rooms, plant rooms, and service areas.
FM Note:
All LV panels must be properly labeled, locked, and maintained to ensure safety.

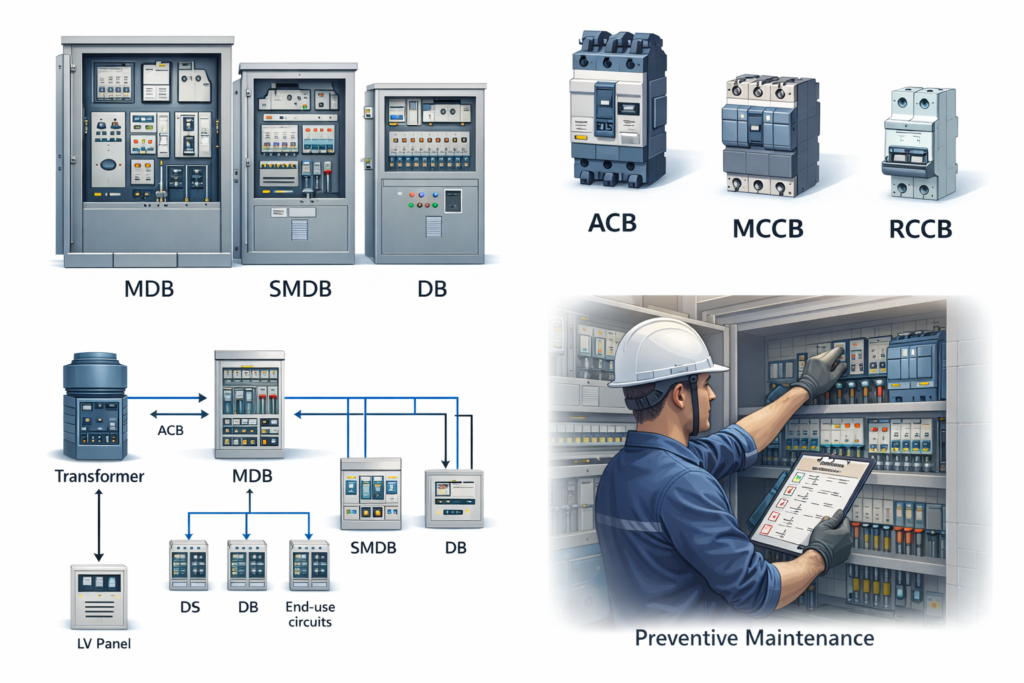

Main Types of LV Panels in Buildings
LV panels are classified based on their position in the electrical distribution hierarchy:
- Main Distribution Board (MDB)
- Sub Main Distribution Board (SMDB)
- Distribution Board (DB)
What Is an MDB (Main Distribution Board)?
Definition:
An MDB is the main LV panel that receives electrical power directly from the utility supply, transformer, or generator.
Purpose:
- Acts as the main power distribution point
- Provides primary protection and isolation
Where Used:
Main electrical rooms, switch rooms, near transformers or generators.
Typical Components:
- ACB or high-rated MCCB (incomer)
- Busbars
- Outgoing MCCBs
- Energy meters and protection relays
Loads Supplied:
- SMDBs
- Chillers and large HVAC equipment
- Elevators
- Fire pump panels
FM Note:
MDBs require strict access control and regular thermographic inspections.
What Is an SMDB (Sub Main Distribution Board)?
Definition:
An SMDB is an intermediate LV panel that receives power from the MDB and distributes it to DBs or major equipment.
Purpose:
- Divides load into zones or floors
- Reduces cable length and losses
Where Used:
Floor electrical rooms, mechanical rooms, service shafts.
Typical Components:
- MCCB incomer
- Outgoing MCCBs or MCBs
- Busbars
Loads Supplied:
- Floor DBs
- Pumps
- AHUs
FM Note:
SMDB tripping often affects a specific area, making fault identification easier.
What Is a DB (Distribution Board)?
Definition:
A DB is the final stage of electrical distribution supplying power directly to end-use circuits.
Purpose:
- Circuit-level protection
- Safe isolation for maintenance
Where Used:
Offices, apartments, corridors, retail units.
Typical Components:
- MCB incomer or isolator
- Individual MCBs
- RCCB or RCBO
- Neutral and earth bars
Loads Supplied:
- Lighting
- Socket outlets
- Small equipment
FM Note:
All DB circuits must be clearly identified to avoid unsafe isolation.
Understanding Circuit Breakers (Clearly Defined)
ACB (Air Circuit Breaker)
Definition: A high-capacity circuit breaker using air as the arc extinguishing medium.
Purpose: Protects main incoming supply in MDBs.
FM Note: Requires trained personnel for operation and testing.
MCCB (Molded Case Circuit Breaker)
Definition: A circuit breaker designed for medium to high current protection with adjustable settings.
Purpose: Protects feeders and sub-panels.
FM Note: Incorrect settings can cause nuisance tripping or failure to trip.
MCB (Miniature Circuit Breaker)
Definition: A low-current protective device for final circuits.
Purpose: Protects lighting and socket circuits.
FM Note: Frequently tripping MCBs indicate overloading or faults.
RCCB / ELCB
Definition: A safety device that disconnects supply during earth leakage.
Purpose: Prevents electric shock.
FM Note: Must be tested periodically using test buttons.
Busbars in LV Panels
Definition:
Busbars are rigid copper or aluminum conductors used to distribute power inside panels.
Purpose:
Provide safe and efficient power distribution.
FM Note:
Loose busbar joints cause overheating and fire risk.
Preventive Maintenance of LV Panels
Definition:
Planned inspections and servicing to prevent failures.
Typical Activities:
- Visual inspection
- Tightening connections
- Cleaning
- Thermography
- Functional testing
FM Note:
PM reduces unplanned shutdowns and safety incidents.
Electrical Safety in LV Panels
Definition:
Practices used to protect people and equipment from electrical hazards.
Key Safety Measures:
- Lockout/Tagout (LOTO)
- PPE usage
- Authorized access
- Updated drawings
FM Note:
Electrical safety violations can be fatal.
Documentation Required for LV Panels
Definition:
Records that support safe operation and maintenance.
Documents Include:
- Single line diagrams
- Panel schedules
- Test reports
- PM records
FM Note:
Outdated drawings are a major safety risk.
Conclusion
LV panels — MDBs, SMDBs, and DBs — form the foundation of building electrical distribution. When each component is clearly understood and properly maintained, facilities professionals can ensure safe, reliable, and efficient operations.
This defined approach helps technicians, engineers, supervisors, and managers handle electrical systems with confidence and professionalism.
